2200 Picture Window

Replacement

slimline frame design allows for maximum viewing area

2200 Picture

The Smarter 2200 Picture Window is our most popular vinyl replacement window.



The slimline frame design allow for maximum viewing area, while our Energy Star glazing package meets the latest, most rigorous Energy Star standards.



An excellent complement to many different casement and double hung applications.



It’s one of the most functional, most efficient vinyl picture windows on the planet.

All about the views



Picture windows are fixed windows that do not open but provide a large unobstructed view ideal for buildings surrounded by vast or outstanding landscapes.



Our picture windows can be installed in single or multi-pane configurations.

Picture Window
Energy Star III and energy star U-4 glazing packages exceed the highest current energy star standards.

Our Energy Star U4 and Energy Star III glazing packages  can lower the average home energy bill by 30 to 40 percent, and cut co2 output by 1,600 pounds per year*

  • Energy Star III energy star
Options
  • Energy Star U-4 energy star
  • DOE R5 Triple Glass Package
  • Clear insulated glass (3/4″)
  • Tints, Heat Reflection and other options available

* Courtesy Truseal Technologies

Energy Star III

Energy Star III
Standard
  • DP 40 Rating
Options
  • DP 50 Rating
  • Full 3″ Foam insulating Wrap
    (install required replacements AMA)
Performance
Standard
  • High-grade PVC delivers exceptional strength and thermal performance
  • Thermal Fusion Welded Frame
  • Interlocking Sloped Sill
  • 3 ¼” Frame Depth
design
Options
    Vinyl Components
    Multiple Grill Patterns Available
    • 3/4″ Contoured Grill Between the Glass

      OUR GRILL BETWEEN THE GLASS INCORPORATES A DELUXE SHADOW BAR GIVING THE LOOK AND FEEL OF DIVIDED PANES.

    • 3/4″ Contoured SDL with spacer bar

      OUR SIMULATED DIVIDED LIGHT GRILL INCORPORATES A SPACE GIVING THE LOOK OF TRUE DIVIDED LIGHT

    grill

    NFRC Thermal Performance Data – 2200

    Glazing U-Value SHGC VLT
    Energy Star U4 0.22 0.28 0.50
    Low E w/ Argon 0.25 0.30 0.55
    Energy Star III 0.26 0.39 0.55
    High Perf. Low E 0.29 0.30 0.55
    Clear 0.45 0.65 0.68

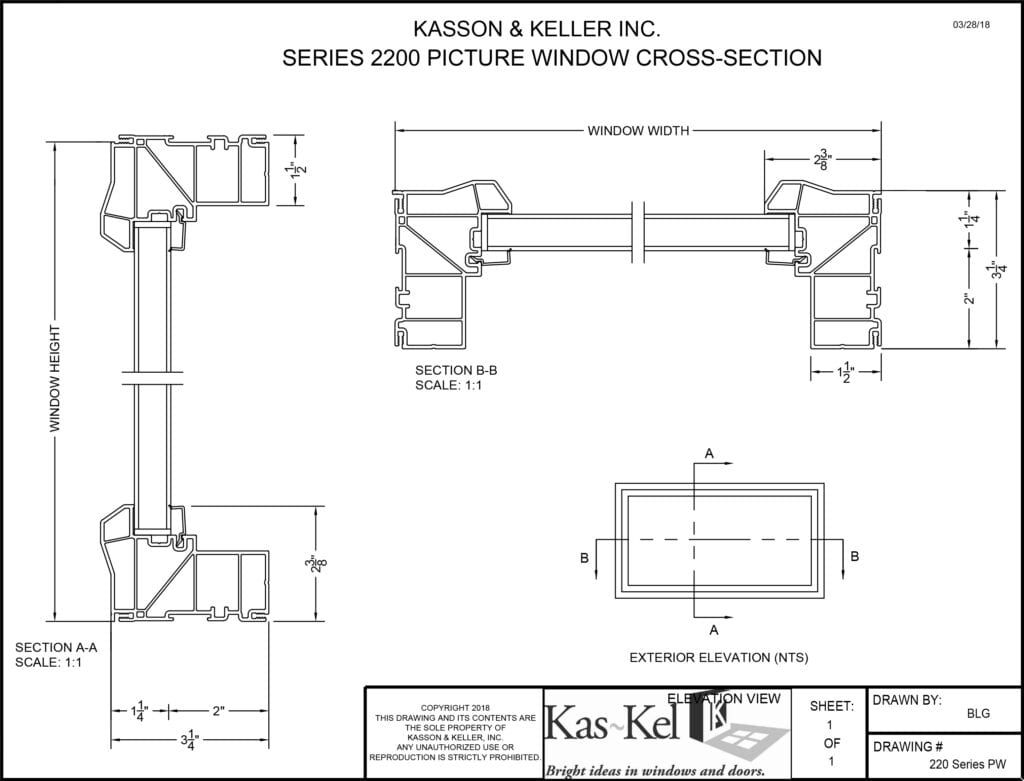

    2200 Picture Cross Section
    PRODUCT MINIMUM TIP UP SIZE MAXIMUM LIMITS
    2200 Picture Window 14 x 20 Maximum 72 x 60, maximum laid up glass option 72″ wide or 72″ height. Maximum UI 144

    PLEASE NOTE:

    Special Conditions and Design Requirements call for certain glazing components. Architectural specifications and wind loads should always be considered before ordering glazing products. These tooling limits are meant to serve as limits of production capabilities and will not warranty product performance of suitability to their end use. Many glass products that are offered as options are not in stock to fulfill all of the above sizes. Please consult customer Service for questions as to proper use.

    Glass must be ordered from an outside source for units larger than 72” one way.

    SPECIAL REQUIREMENTS?
    Contact Us and We will see if we can Help!

    Best of Class Warranty

    • Lifetime Mechanical Parts
    • Glass Breakage Coverage
    • Lifetime Insulating Glass
    • Lifetime Vinyl Extrusions

    Our Windows are made in the Northeast for the Northeast backed by 4 generations of our family – serving you since 1946.

    MADE IN AMERICA

    girl

    Standard Colors

    Terrastone
    Terrastone
    Fieldstone
    Fieldstone
    Black
    Black
    Bronze
    Bronze
    Autumn Red
    Autumn Red
    Hunter Green
    Hunter Green

    Have a color in mind? We can custom match it!

    *All representations of colors are mechanically reproduced and may vary from the actual product. Terms and conditions apply.

    2200 Replacement Window Series by Kasson & Keller

    Whether You Are A Builder, Architect or Home Owner, Smarter’s Replacement Windows Will Offer You A Lifetime Of Worry-Free Operation, Backed By One Of The Best Warranties In The Industry.
    Energy Star
    AAMA Logo
    NFRC Certified

    * Rating, qualification, or compliancy is dependent on selected options and window style.
