300 Picture Window

clean finish look and easy installation

Description

300 Picture



Smarter’s 300 series new construction picture windows feature an integrated brickmold trim package, which creates a traditional exterior finish.



The brickmold trim also serves as a J-channel pocket making for a clean finish look and easy installation.



An excellent complement to many different casement and double hung applications.

All about the views

Picture windows are fixed windows that do not open but provide a large unobstructed view ideal for buildings surrounded by vast or outstanding landscapes.

Our picture windows can be installed in single or multi-pane configurations.

300 Picture

Glass Options

Energy Star III and energy star U-4 glazing packages exceed the highest current energy star standards.

Our Energy Star U4 and Energy Star III glazing packages  can lower the average home energy bill by 30 to 40 percent, and cut co2 output by 1,600 pounds per year*

  • Energy Star III
    energy star
Options
  • Energy Star U-4  energy star
  • Clear insulated glass (3/4″)
  • Tints, Heat Reflection and other options available

* Courtesy Truseal Technologies

 Energy Star III

Energy Star III
More About Glass Options

Performance

Standard

  • DP 35 Rating

Options

  • DP 50 Rating
  • Full 3″ Foam insulating Wrap
    (install required replacements AMA)
More about DP Ratings
Performance

Materials

Standard
  • High-grade PVC delivers exceptional strength and thermal performance
  • Welded Frame
  • Sloped Sill with Interlocking Leg
  • Frame Depth 3 5/8″
design
Options
  • Integral Nail Fin
  • Integral Nail Fin and J-Channel
  • 4 9/16″ Pre-Primed Extension Jamb
  • 6 9/16″ Pre-Primed Extension Jamb
More About Vinyl Construction
Vinyl Components

Grills

Multiple Grill Patterns Available

  • 3/4″ Contoured Grill Between the Glass

    OUR GRILL BETWEEN THE GLASS INCORPORATES A DELUXE SHADOW BAR GIVING THE LOOK AND FEEL OF DIVIDED PANES.

  • 3/4″ Contoured SDL with spacer bar

    OUR SIMULATED DIVIDED LIGHT GRILL INCORPORATES A SPACE GIVING THE LOOK OF TRUE DIVIDED LIGHT

Grill Patterns
Profiles
grill

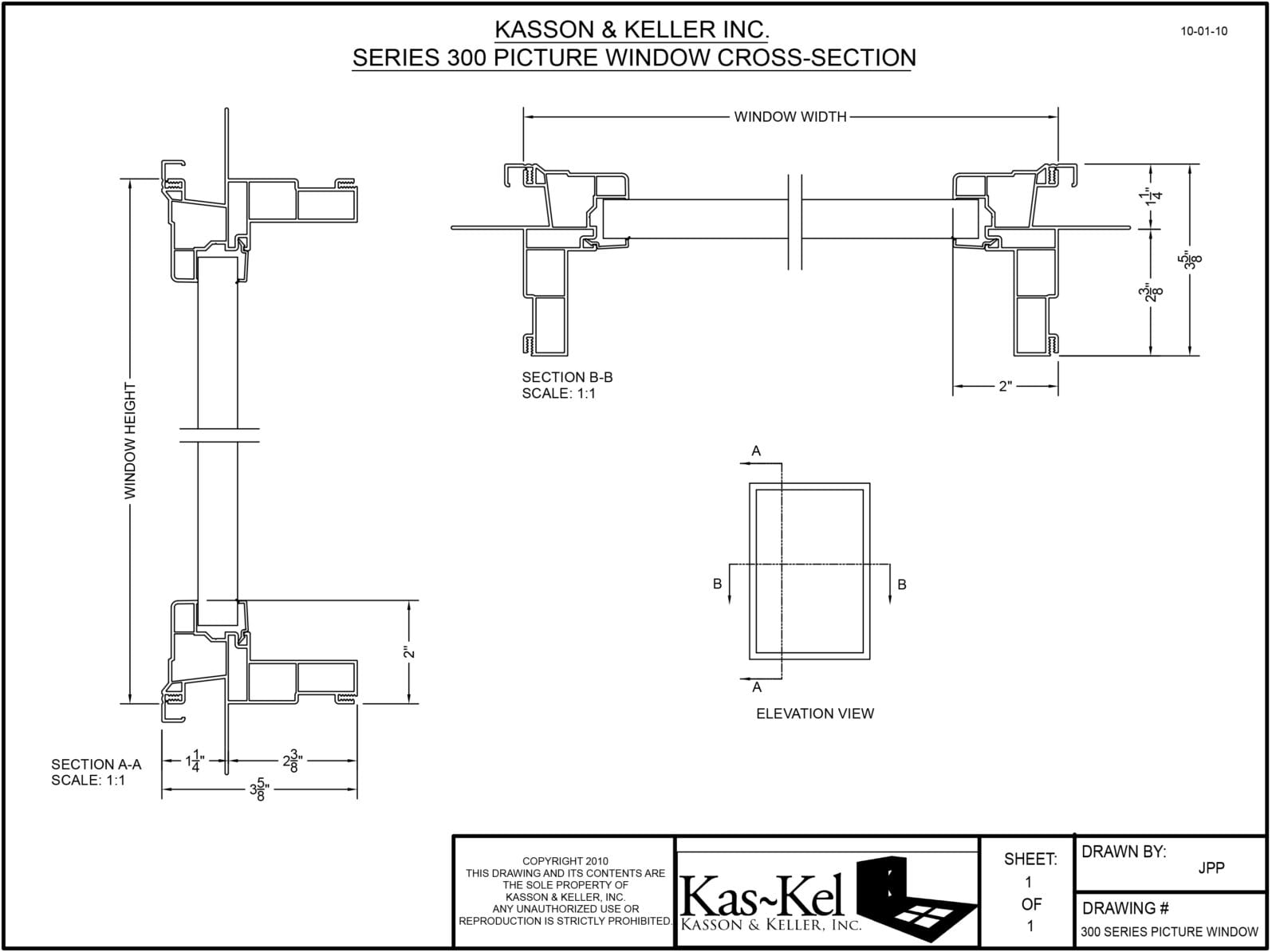

Cross Section

300 Picture Cross Section
Download pdf

Thermal Data

NFRC Thermal Performance Data

NFRC Thermal Performance Data (with Grids)

Sizing

300 Series Fixed (Wood Sized)

CALL SIZE UNIT DIMENSION ROUGH OPENING CLEAR OPENING (SQ. FT.) VISIBLE GLASS (SQ. FT.)
1820 21 1/2 x 26 1/2 22 x 27 17 3/8 x 22 3/8 2.7
1830 21 1/2 X 40 1/2 22 x 41 17 3/8 x 36 3/8 4.39
1836 21 1/2 X 48 1/2 22 x 49 17 3/8 x 44 3/8 5.35
1840 21 1/2 X 52 1/2 22 x 53 17 3/8 x 48 3/8 5.83
1844 21 1/2 X 56 1/2 22 x 57 17 3/8 x 52 3/8 6.32
1846 21 1/2 X 60 1/2 22 x 61 17 3/8 x 56 3/8 6.8
1850 21 1/2 X 64 1/2 22 x 65 17 3/8 x 60 3/8 7.28
2020 25 1/2 x 26 1/2 26 x 27 21 3/8 x 22 3/8 3.32
2030 25 1/2 X 40 1/2 26 x 41 21 3/8 x 36 3/8 5.4
2036 25 1/2 X 48 1/2 26 x 49 21 3/8 x 44 3/8 6.58
2040 25 1/2 X 52 1/2 26 x 53 21 3/8 x 48 3/8 7.18
2044 25 1/2 X 56 1/2 26 x 57 21 3/8 x 52 3/8 7.77
2046 25 1/2 X 60 1/2 26 x 61 21 3/8 x 56 3/8 8.37
2050 25 1/2 X 64 1/2 26 x 65 21 3/8 x 60 3/8 8.96
2420 29 1/2 x 26 1/2 30 x 27 25 3/8 x 22 3/8 3.94
2430 29 1/2 X 40 1/2 30 x 41 25 3/8 x 36 3/8 6.41
2436 29 1/2 X 48 1/2 30 x 49 25 3/8 x 44 3/8 7.82
2440 29 1/2 X 52 1/2 30 x 53 25 3/8 x 48 3/8 8.52
2444 29 1/2 X 56 1/2 30 x 57 25 3/8 x 52 3/8 9.23
2446 29 1/2 X 60 1/2 30 x 61 25 3/8 x 56 3/8 9.93
2450 29 1/2 X 64 1/2 30 x 65 25 3/8 x 60 3/8 10.64
2620 31 1/2 x 26 1/2 32 x 27 27 3/8 x 22 3/8 4.25
2630 31 1/2 X 40 1/2 32 x 41 27 3/8 x 36 3/8 6.91
2636 31 1/2 X 48 1/2 32 x 49 27 3/8 x 44 3/8 8.43
2640 31 1/2 X 52 1/2 32 x 53 27 3/8 x 48 3/8 9.19
2644 31 1/2 X 56 1/2 32 x 57 27 3/8 x 52 3/8 9.96
2646 31 1/2 X 60 1/2 32 x 61 27 3/8 x 56 3/8 10.72
2650 31 1/2 X 64 1/2 32 x 65 27 3/8 x 60 3/8 11.48
2820 33 1/2 x 26 1/2 34 x 27 29 3/8 x 22 3/8 4.56
2830 33 1/2 X 40 1/2 34 x 41 29 3/8 x 36 3/8 7.42
2836 33 1/2 X 48 1/2 34 x 49 29 3/8 x 44 3/8 9.05
2840 33 1/2 X 52 1/2 34 x 53 29 3/8 x 48 3/8 9.87
2844 33 1/2 X 56 1/2 34 x 57 29 3/8 x 52 3/8 10.68
2846 33 1/2 X 60 1/2 34 x 61 29 3/8 x 56 3/8 11.5
2850 33 1/2 X 64 1/2 34 x 65 29 3/8 x 60 3/8 12.31
3020 37 1/2 x 26 1/2 38 x 27 33 3/8 x 22 3/8 5.18
3030 37 1/2 X 40 1/2 38 x 41 33 3/8 x 36 3/8 8.43
3036 37 1/2 X 48 1/2 38 x 49 33 3/8 x 44 3/8 10.28
3040 37 1/2 X 52 1/2 38 x 53 33 3/8 x 48 3/8 11.21
3044 37 1/2 X 56 1/2 38 x 57 33 3/8 x 52 3/8 12.14
3046 37 1/2 X 60 1/2 38 x 61 33 3/8 x 56 3/8 13.06
3050 37 1/2 X 64 1/2 38 x 65 33 3/8 x 60 3/8 13.99
3220 39 1/2 x 26 1/2 40 x 27 35 3/8 x 22 3/8 5.49
3230 39 1/2 X 40 1/2 40 x 41 35 3/8 x 36 3/8 8.93
3236 39 1/2 X 48 1/2 40 x 49 35 3/8 x 44 3/8 10.9
3240 39 1/2 X 52 1/2 40 x 53 35 3/8 x 48 3/8 11.88
3244 39 1/2 X 56 1/2 40 x 57 35 3/8 x 52 3/8 12.87
3246 39 1/2 X 60 1/2 40 x 61 35 3/8 x 56 3/8 13.85
3250 39 1/2 X 64 1/2 40 x 65 35 3/8 x 60 3/8 14.83
3420 41 1/2 x 26 1/2 42 x 27 37 3/8 x 22 3/8 5.8
3430 41 1/2 X 40 1/2 42 x 41 37 3/8 x 36 3/8 9.44
3436 41 1/2 X 48 1/2 42 x 49 37 3/8 x 44 3/8 11.52
3440 41 1/2 X 52 1/2 42 x 53 37 3/8 x 48 3/8 12.55
3444 41 1/2 X 56 1/2 42 x 57 37 3/8 x 52 3/8 13.59
3446 41 1/2 X 60 1/2 42 x 61 37 3/8 x 56 3/8 14.63
3450 41 1/2 X 64 1/2 42 x 65 37 3/8 x 60 3/8 15.67
3820 45 1/2 x 26 1/2 46 x 27 41 3/8 x 22 3/8 6.43
3830 45 1/2 X 40 1/2 46 x 41 41 3/8 x 36 3/8 10.45
3836 45 1/2 X 48 1/2 46 x 49 41 3/8 x 44 3/8 12.75
3840 45 1/2 X 52 1/2 46 x 53 41 3/8 x 48 3/8 13.9
3844 45 1/2 X 56 1/2 46 x 57 41 3/8 x 52 3/8 15.05
3846 45 1/2 X 60 1/2 46 x 61 41 3/8 x 56 3/8 16.2
3850 45 1/2 X 64 1/2 46 x 65 41 3/8 x 60 3/8 17.35

Warranty

Best of Class Warranty
  • Lifetime Mechanical Parts
  • Glass Breakage Coverage
  • Lifetime Insulating Glass
  • Lifetime Vinyl Extrusions

Our Windows are made in the Northeast for the Northeast backed by 4 generations of our family – serving you since 1946.

MADE IN AMERICA

Warranty
girl

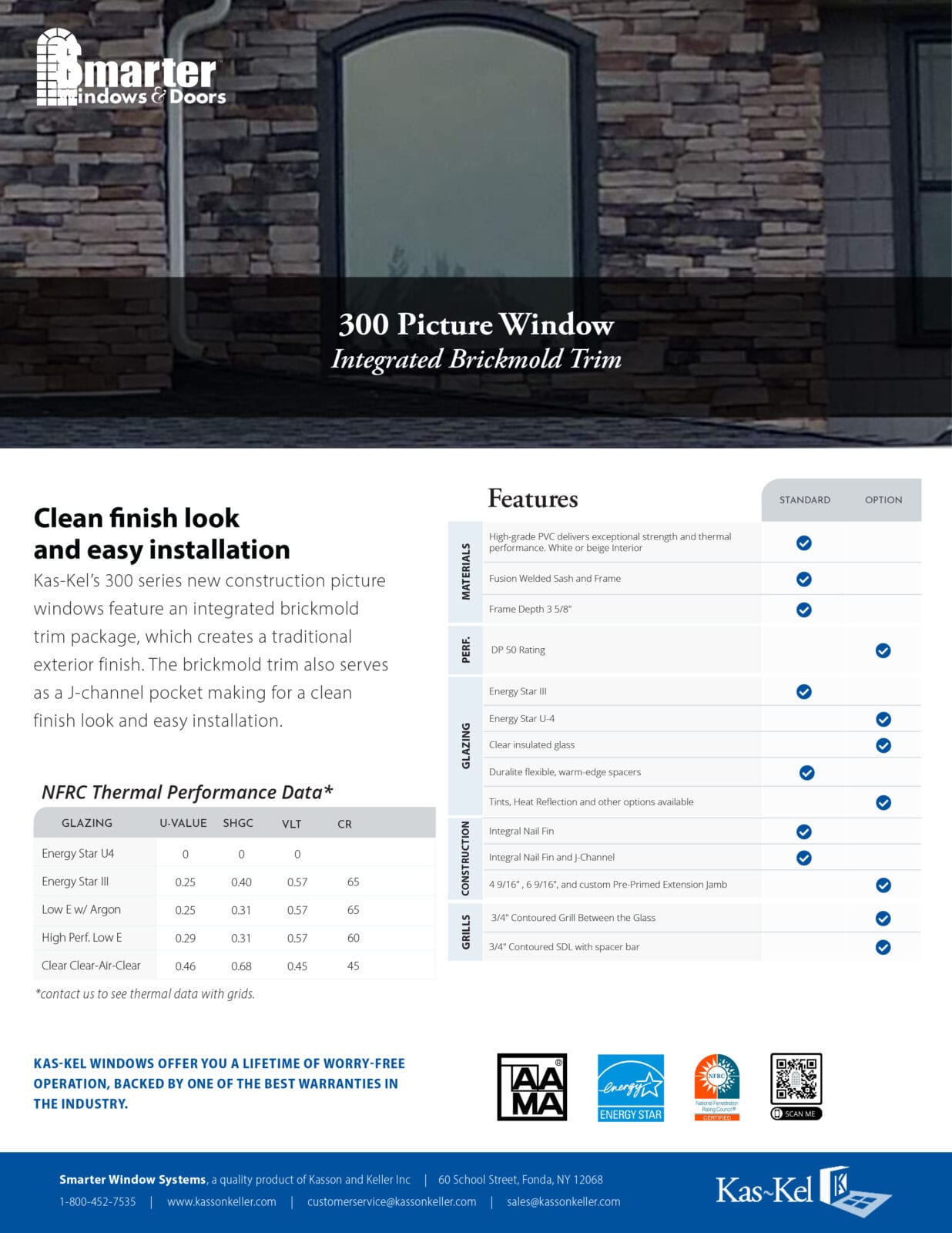

Brochure

300 Picture

Standard Exterior Colors

Terrastone
Terrastone
Fieldstone
Fieldstone
Black
Black
Bronze
Bronze
Autumn Red
Autumn Red
Hunter Green
Hunter Green

Have a color in mind? We can custom match it!

*All representations of colors are mechanically reproduced and may vary from the actual product. Terms and conditions apply.

THE WORK WE’RE PROUD OF AND OUR CLIENTS LOVE

300 Double Hung
300 Double Hung
Integrated brickmold trim package or 3 1/2" vinyl trim
300 Picture
300 Picture
traditional exterior finish
300 Rolling
300 Rolling
Integrated brickmold trim package
Copper Cove Village
Copper Cove Village
Innovative Solutions
Mill Pond Way
Mill Pond Way
Simulating Traditional Look While Meeting Egress
Bedford Hills
Bedford Hills
Innovative Solutions
LeBaron County Club
LeBaron County Club
Innovation with Flat Casing
Edinburg Common School
Edinburg Common School
Replace Poor Performing Wood Windows with DEO R5 Triple Pane
Whether you are a builder, architect or home owner, Smarter new construction windows will offer you a lifetime of worry-free operation, backed by one of the best warranties in the industry.
Energy Star
AAMA Logo
NFRC Certified

* Rating, qualification, or compliancy is dependent on selected options and window style.
