700 Awning Window

New Construction

Easy operation and maximum ventilation

700 Awning

The Smarter 700 new construction vinyl awning window is engineered for easy operation and maximum ventilation, and styled to fit almost any décor.



Multi-point locking provides added security, and all are available in single and multi-unit combinations.

For privacy and hard to reach areas



Awning windows are one of the most versatile window options. Because they can be placed high on a wall, they offer elevated privacy and are often preferred for bathrooms. Placed over a  kitchen sink or counter area, their hand-crank design allows for easier access than other types of windows.



Awning windows make beautiful accent windows when placed below  fixed windows. They can also be used as stand-alone windows in place of casement or double hung windows. Because of their innate functionality, they are often preferred for ventilation during rain or snow as they shield the interior from precipitation.



The awning window consists of a single sash that opens outward. Hinges lie along the top of the frame, so that it resembles an awning when open. A hand crank accessible from inside the building operates the opening and closing mechanism.

Mill Pond Way

Standard

  • High-grade PVC delivers exceptional strength and thermal performance
  • Fusion Welded Sash and Frame
  • Beveled Sash
  • Sash Snubbers
design
Energy Star III and energy star U-4 glazing packages exceed the highest current energy star standards.

Our Energy Star U4 and Energy Star III glazing packages  can lower the average home energy bill by 30 to 40 percent, and cut co2 output by 1,600 pounds per year*

ENERGY STAR III

Energy Star III

Options

  • Energy Star III  energy star
    (3/4″) (Recommended)
  • DOE R5 energy star
    Triple Glass Package  (1″)
  • Clear insulated glass (3/4″)
  • Impact Resistance, Tints, Heat Reflection and other options available

* Courtesy Truseal Technologies

Standard

  • DP 50 Rating
performance winter window

Standard

  • Produced in white or beige to seamlessly match your window frame
  • Single Lever Multi-Point Locking System

Options

  • Folding Hardware

Kasson & Keller, Inc. Uses high grade alloyed cast steel in our hardware to ensure our windows stand the test of time.

Awning

Standard

  • Double weather stripped Sash

Options

  • Nailing fin with J Channel
  • Brickmold J Channel/ or no J Channel
  • 1/2″ and 3/4″ Sheetrock Returns
  • Primed Solid Pine Applied Extension Jambs 4-9/16”, 6-9/16” and Custom
Extension Jamb

Standard

  • Extruded aluminum framed fiberglass full screen

Options

  • Aluminum Screening Material
Screen in Awning

Multiple Grill Patterns Available

  • 3/4″ Contoured Grill Between the Glass

    Our grill between the glass incorporates a deluxe shadow bar giving the look and feel of divided panes.

  • 3/4″ Contoured SDL with spacer bar

    Our simulated divided light grill incorporates a space giving the look of true divided light

  • 2″ Contoured SDL with spacer bar

    for simulated Double Hung look

grill

NFRC Thermal Performance Data

Glazing U-Value SHGC VLT
DOE – R5 – Triple 0.21 0.19 0.33
Low E w/ Argon 0.28 0.24 0.44
High Perf. Low E 0.32 0.24 0.44
Clear 0.41 0.53 0.54

NFRC Testing Chart
Department of Energy R5 Program
Triple Glazing Package

Effective Date: March 1, 2010

U-FACTOR SHGC VT CR DBL LOW E GAS
SSB WITHOUT GRIDS 0.20 0.19 0.35 75 Y DOUBLE ARGON
SSB WITH GRIDS 0.20 0.18 0.32 75 Y DOUBLE ARGON
DSB WITHOUT GRIDS 0.21 0.19 0.35 74 Y DOUBLE ARGON
DSB WITH GRIDS 0.22 0.18 0.32 74 Y DOUBLE ARGON

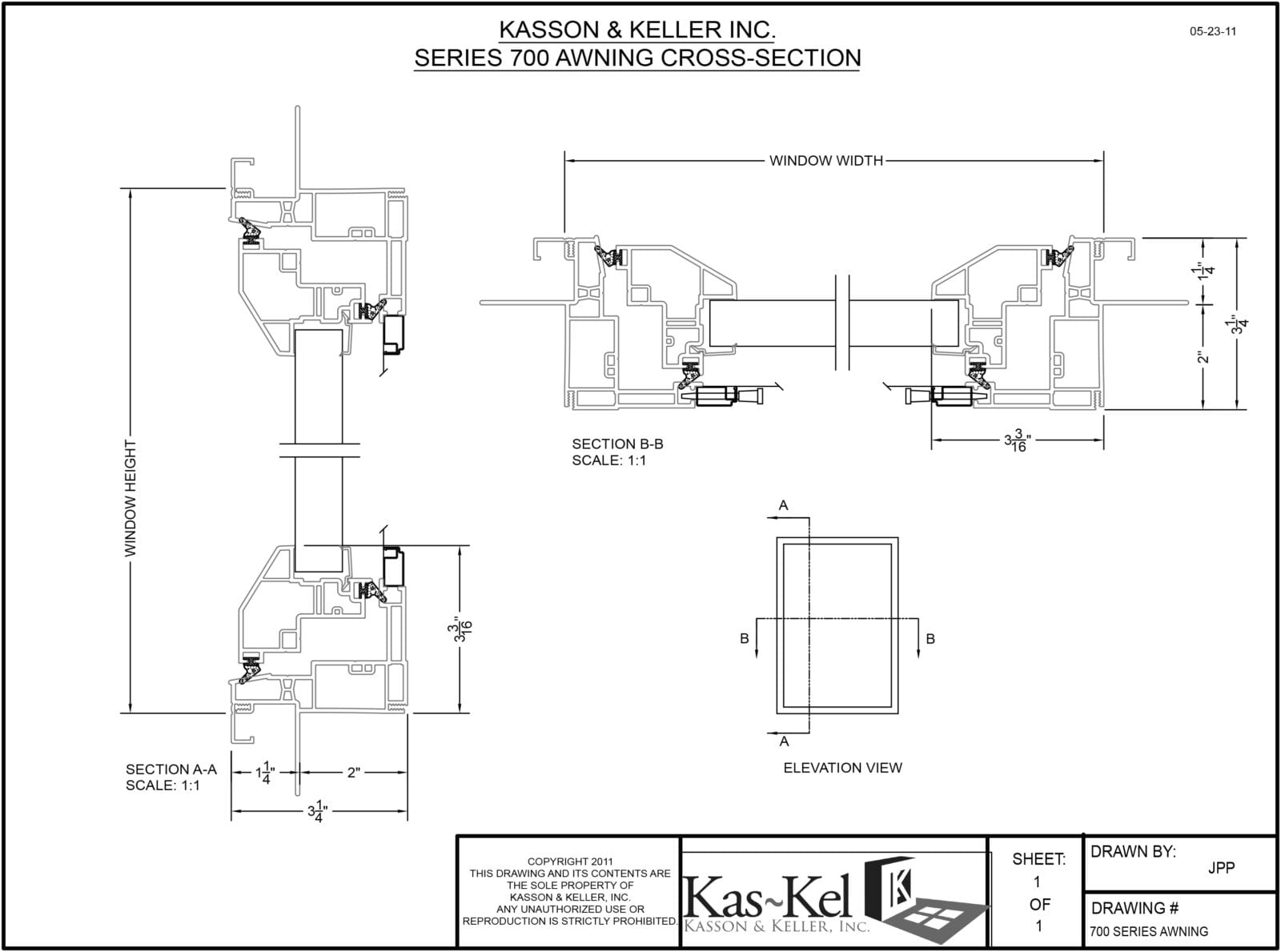

700 Awning Cross Section

Kas-Kel  700 Awning Windows



Call Size Manufactured Rough DO Upper DO Lower Opening Clear
1-8 X 1-8 21 1/2 X 22 1/2 22 X 23 16 11/16 X 17 11/16 1-8 X 1-8 21 1/2 X 22 1/2 22 X 23
1-8 X 2-0 21 1/2 X 26 1/2 22 X 27 16 11/16 X 21 11/16 1-8 X 2-0 21 1/2 X 26 1/2 22 X 27
1-8 X 2-10 21 1/2 X 36 1/2 22 X 37 16 11/16 X 31 11/16 1-8 X 2-10 21 1/2 X 36 1/2 22 X 37
1-8 X 3-2 21 1/2 X 40 1/2 22 X 41 16 11/16 X 35 11/16 1-8 X 3-2 21 1/2 X 40 1/2 22 X 41

Best of Class Warranty

  • Lifetime Mechanical Parts
  • Lifetime Vinyl Extrusions
  • Lifetime Insulating Glass
  • Glass Breakage Coverage

Our Windows are made in the Northeast for the Northeast backed by 4 generations of our family – serving you since 1946.

MADE IN AMERICA

girl

Standard Colors

Terrastone
Terrastone
Fieldstone
Fieldstone
Black
Black
Bronze
Bronze
Autumn Red
Autumn Red
Hunter Green
Hunter Green

Have a color in mind? We can custom match it!

*All representations of colors are mechanically reproduced and may
vary from the actual product. Terms and conditions apply.

Whether you are a builder, architect or home owner, Smarter new construction windows will offer you a lifetime of worry-free operation, backed by one of the best warranties in the industry.
Energy Star
AAMA Logo
NFRC Certified

* Rating, qualification, or compliancy is dependent on selected options and window style.
