700 Casement Windows

New Construction

engineered for easy operation and maximum ventilation

Smarter 700 Casement windows are engineered for easy operation and maximum ventilation.



Multi-point locking provides added safety and security, and all models are available in single and multi-unit combinations.

Modern utility meets classic design

Casement windows are versatile windows that work well in most rooms, combining beauty and high functionality.

A single sash opens outward from hinges along the side of the window frame, similar to how a door operates. A hand crank on the inside of the window frame allows for easy open and close functionalities. Clever design keeps the window from flying open in strong wind or breezes.

Casement windows can also be installed to open to the left or right, giving way to a wide range of aesthetic window arrangements (singular or multi unit design).

Open Casement
Standard
  • High-grade PVC delivers exceptional strength and thermal performance
  • Fusion Welded Sash and Frame
  • Exterior Beveled Sash
  • Sash Snubbers
  • Double weather stripped Sash
  • Single Lever Multi-Point Locking System
design
Standard
  • DP 50 Rating
performance winter window
Energy Star III and energy star U-4 glazing packages exceed the highest current energy star standards.

Our Energy Star U4 and Energy Star III glazing packages  can lower the average home energy bill by 30 to 40 percent, and cut co2 output by 1,600 pounds per year*

Energy Star III

Energy Star III

Options

  • Energy Star III energy star
    (3/4″) (recommended)
  • DOE R5  energy star
    (1″) Triple Glass Package
  • Clear insulated glass (3/4″)
  • Impact Resistance, Tints, Heat Reflection, Impact Resistance, Triple Glazing and other options available

* Courtesy Truseal Technologies

Standard
  • Single Lever Multi-Point Locking System
Options
  • Egress Hardware
  • Folding Hardware
  • Sash Limiter Hardware (for Fall Prevention)
Kasson & Keller, Inc. Uses high grade alloyed cast steel in our hardware to ensure our windows stand the test of time.
Casement Hardware
Standard
  • Nailing fin with J Channel
Options
  • 3″ Cambridge Casing
  • Brickmold J Channel/ or no J Channel
  • Primed Applied Solid Pine Extension Jambs 4-9/16″, 6-9/16″ and Custom
  • 1/2″ and 3/4″ Sheetrock Returns
Extension Jamb
Standard
  • Aluminum Extruded Full View Fiberglass Full Screen
Options
  • Aluminum Screening Material
Screen on Casement
Multiple Grill Patterns Available
  • 3/4″ Contoured Grill Between the Glass

    Our grill between the glass incorporates a deluxe shadow bar giving the look and feel of divided panes.

  • 3/4″ Contoured SDL with spacer bar

    Our simulated divided light grill incorporates a space giving the look of true divided light

  • 2″ Contoured SDL with spacer bar

    for simulated Double Hung look

grill

NFRC Thermal Performance Data

Glazing U-Value SHGC VLT
DOE – R5 – Triple 0.21 0.19 0.33
Low E w/ Argon 0.28 0.24 0.44
High Perf. Low E 0.31 0.24 0.44
Clear 0.43 0.53 0.54
NFRC Testing Chart
Department of Energy R5 Program
Triple Glazing Package

Effective Date: March 1, 2010

U-FACTOR SHGC VT CR DBL LOW E GAS
SSB WITHOUT GRIDS 0.20 0.19 0.35 74 Y DOUBLE ARGON
SSB WITH GRIDS 0.21 0.18 0.32 74 Y DOUBLE ARGON
DSB WITHOUT GRIDS 0.22 0.19 0.35 74 Y DOUBLE ARGON
DSB WITH GRIDS 0.22 0.18 0.32 74 Y DOUBLE ARGON

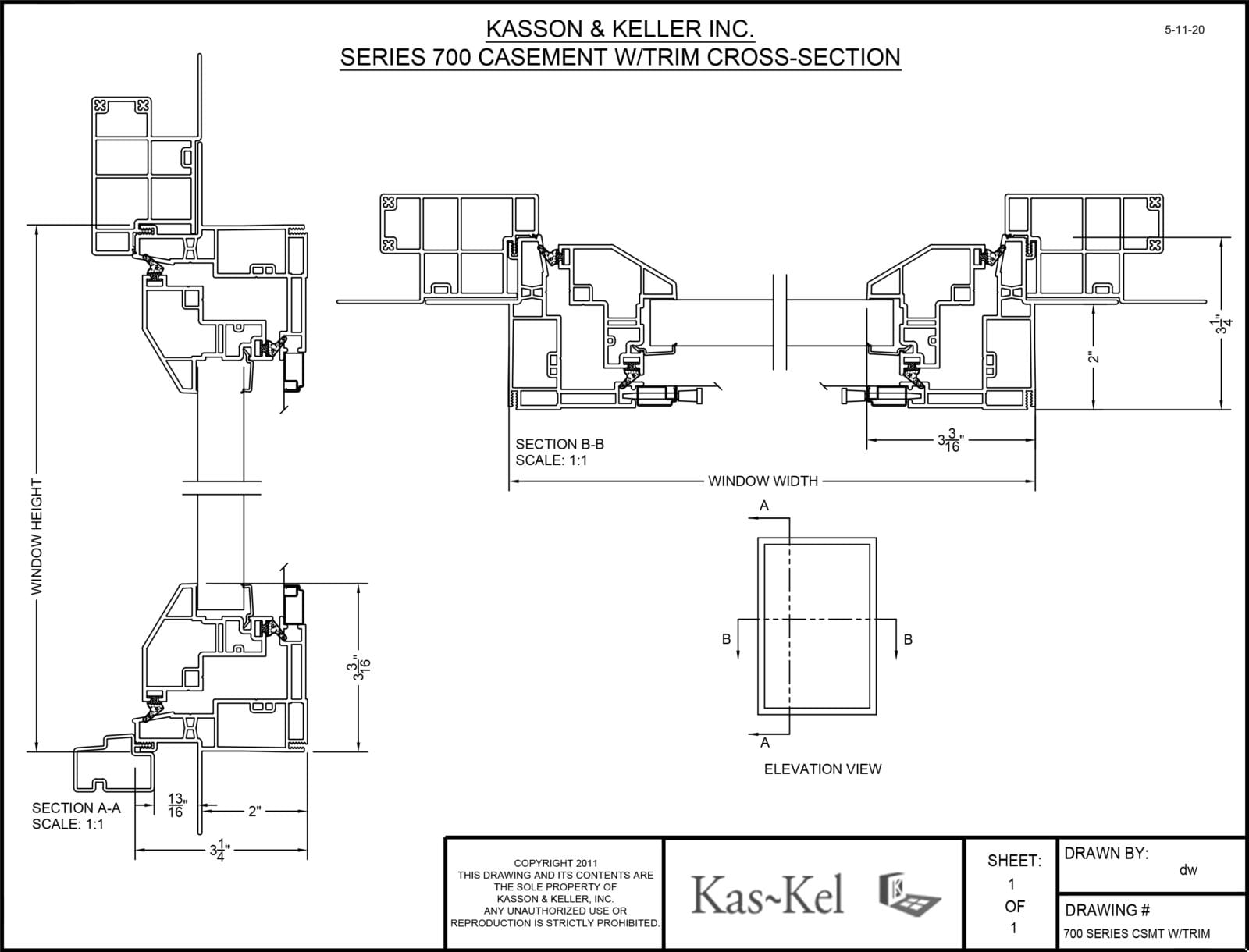

700 Casement Cross Section
Call Size Manufactured Rough DO Upper DO Lower Opening Clear
1-5 / 1-5 x 3-0 16-1/2 x 35-1/2 17 x 36 10 x 29 4-3/4 x 30-7/16 1.004 sq ft 1-5 / 1-5 x 3-0
1-5 / 1-5 x 3-5 16-1/2 x 40-1/2 17 x 41 10 x 34 4-3/4 x 35-7/16 1.169 sq ft 1-5 / 1-5 x 3-5
1-5 / 1-5 x 4-0 16-1/2 x 47-1/2 17 x 48 10 x 41 4-3/4 x 42-7/16 1.4 sq ft 1-5 / 1-5 x 4-0
1-5 / 1-5 x 5-0 16-1/2 x 59-1/2 17 x 60 10 x 53 4-3/4 x 54-7/16 1.796 sq ft 1-5 / 1-5 x 5-0
1-5 / 1-5 x 6-0 16-1/2 x 71-1/2 17 x 72 10 x 65 4-3/4 x 66-7/16 2.192 sq ft 1-5 / 1-5 x 6-0
Call Size Manufactured Rough DO Upper DO Lower Opening Clear
1-8 / 1-8 x 3-0 19-1/2 x 35-1/2 20 x 36 13 x 29 7-3/4 x 30-7/16 1.638 sq ft 1-8 / 1-8 x 3-0
1-8 / 1-8 x 3-5 19-1/2 x 40-1/2 20 x 41 13 x 34 7-3/4 x 35-7/16 1.907 sq ft 1-8 / 1-8 x 3-5
1-8 / 1-8 x 4-0 19-1/2 x 47-1/2 20 x 48 13 x 41 7-3/4 x 42-7/16 2.284 sq ft 1-8 / 1-8 x 4-0
1-8 / 1-8 x 5-0 19-1/2 x 59-1/2 20 x 60 13 x 53 7-3/4 x 54-7/16 2.93 sq ft 1-8 / 1-8 x 5-0
1-8 / 1-8 x 6-0 19-1/2 x 71-1/2 20 x 72 13 x 65 7-3/4 x 66-7/16 3.576 sq ft 1-8 / 1-8 x 6-0
Call Size Manufactured Rough DO Upper DO Lower Opening Clear
2-0 / 2-0 x 3-0 23-1/2 x 35-1/2 24 x 36 17 x 29 11-3/4 x 30-7/16 2.484 sq ft 2-0 / 2-0 x 3-0
2-0 / 2-0 x 3-5 23-1/2 x 40-1/2 24 x 41 17 x 34 11-3/4 x 35-7/16 2.892 sq ft 2-0 / 2-0 x 3-5
2-0 / 2-0 x 4-0 23-1/2 x 47-1/2 24 x 48 17 x 41 11-3/4 x 42-7/16 3.3463 sq ft 2-0 / 2-0 x 4-0
2-0 / 2-0 x 5-0 23-1/2 x 59-1/2 24 x 60 17 x 53 11-3/4 x 54-7/16 4.442 sq ft 2-0 / 2-0 x 5-0
2-0 / 2-0 x 6-0 23-1/2 x 71-1/2 24 x 72 17 x 65 11-3/4 x 66-7/16 5.421 sq ft 2-0 / 2-0 x 6-0
Call Size Manufactured Rough DO Upper DO Lower Opening Clear
2-4 / 2-4 x 3-0 27-1/2 x 35-1/2 28 x 36 21 x 29 15-3/4 x 30-7/16 3.329 sq ft 2-4 / 2-4 x 3-0
2-4 / 2-4 x 3-5 27-1/2 x 40-1/2 28 x 41 21 x 34 15-3/4 x 35-7/16 3.876 sq ft 2-4 / 2-4 x 3-5
2-4 / 2-4 x 4-0 27-1/2 x 47-1/2 28 x 48 21 x 41 15-3/4 x 42-7/16 4.642 sq ft 2-4 / 2-4 x 4-0
2-4 / 2-4 x 4-0 E 27-1/2 x 47-1/2 28 x 48 21 x 41 15-3/4 x 42-7/16 5.968 sq ft 2-4 / 2-4 x 4-0 E
2-4 / 2-4 x 5-0 27-1/2 x 59-1/2 28 x 60 21 x 53 15-3/4 x 59-1/2 5.954 sq ft 2-4 / 2-4 x 5-0
2-4 / 2-4 x 6-0 27-1/2 x 71-1/2 28 x 72 21 x 65 15-3/4 x 66-7/16 7.267 sq ft 2-4 / 2-4 x 6-0

Best of Class Warranty

  • Lifetime Vinyl Extrusions
  • Lifetime Mechanical Parts
  • Glass Breakage Coverage
  • Lifetime Insulating Glass

Our Windows are made in the Northeast for the Northeast backed by 4 generations of our family – serving you since 1946.

MADE IN AMERICA

girl

Standard Exterior Colors

Terrastone
TERRASTONE
Fieldstone
FIELDSTONE
Black
BLACK
Bronze
BRONZE
Autumn Red
AUTUMN RED
Hunter Green
HUNTER GREEN

Have a color in mind? We can custom match it!

*All representations of colors are mechanically reproduced and may vary from the actual product. Terms and conditions apply.

THE WORK WE’RE PROUD OF AND OUR CLIENTS LOVE

Whether you are a builder, architect or home owner, Smarter new construction windows will offer you a lifetime of worry-free operation, backed by one of the best warranties in the industry.
Energy Star
AAMA Logo
NFRC Certified

* Rating, qualification, or compliancy is dependent on selected options and window style.
