700 Picture Window

New Construction

highly-efficient system – engineered for strength and durability

Description

700 Picture

The Smarter  700 new construction vinyl picture window is styled to fit almost any décor.



An excellent complement to many different casement and double hung applications.



All are available in single and multi-unit combinations.

All about the views



Picture windows are fixed windows that do not open but provide a large unobstructed view ideal for buildings surrounded by vast or outstanding landscapes.



Our picture windows can be installed in single or multi-pane configurations.

Picture Window

Glass Options

Energy Star III and energy star U-4 glazing packages exceed the highest current energy star standards.

Our Energy Star U4 and Energy Star III glazing packages  can lower the average home energy bill by 30 to 40 percent, and cut co2 output by 1,600 pounds per year*

  • Energy Star III energy star

Options

  • Energy Star U-4 energy star
  • DOE R5 Triple Glass Packageenergy star
  • Clear insulated glass (3/4″)
  • Tints, Heat Reflection and other options available

* Courtesy Truseal Technologies

Energy Star III

Energy Star III
More About Glass Options

Performance

Standard

  • DP 50 Rating

Options

  • Full 3″ Foam insulating Wrap
    (install required replacements AMA)
More about DP Ratings
Performance

Materials

Standard

  • High-grade PVC delivers exceptional strength and thermal performance
  • Thermal Fusion Welded Frame
Vinyl window frame profile coming out of an extrusion die

Options

  • 3″ Cambridge Flat Casing
  • Multi Unit Mullion Package
  • Integral Nail Fin
  • Integral Nail Fin and J-Channel
  • 4 9/16″ Pre-Primed or Clear Extension Jamb
  • 6 9/16″ Pre-Primed or Clear Extension Jamb
More About Vinyl Construction
Vinyl Components

Grills

Multiple Grill Patterns Available

  • 3/4″ Contoured Grill Between the Glass

    OUR GRILL BETWEEN THE GLASS INCORPORATES A DELUXE SHADOW BAR GIVING THE LOOK AND FEEL OF DIVIDED PANES.

  • 3/4″ Contoured SDL with spacer bar

    OUR SIMULATED DIVIDED LIGHT GRILL INCORPORATES A SPACE GIVING THE LOOK OF TRUE DIVIDED LIGHT

Grid Patterns
Profiles
grill

Thermal Data

NFRC Thermal Performance Data – 700


Glazing U-Value SHGC VLT
DOE – R5 – Triple 0.21 0.22 0.38
Low E w/ Argon 0.26 0.28 0.51
High Perf. Low E 0.30 0.29 0.51
Clear 0.45 0.61 0.63

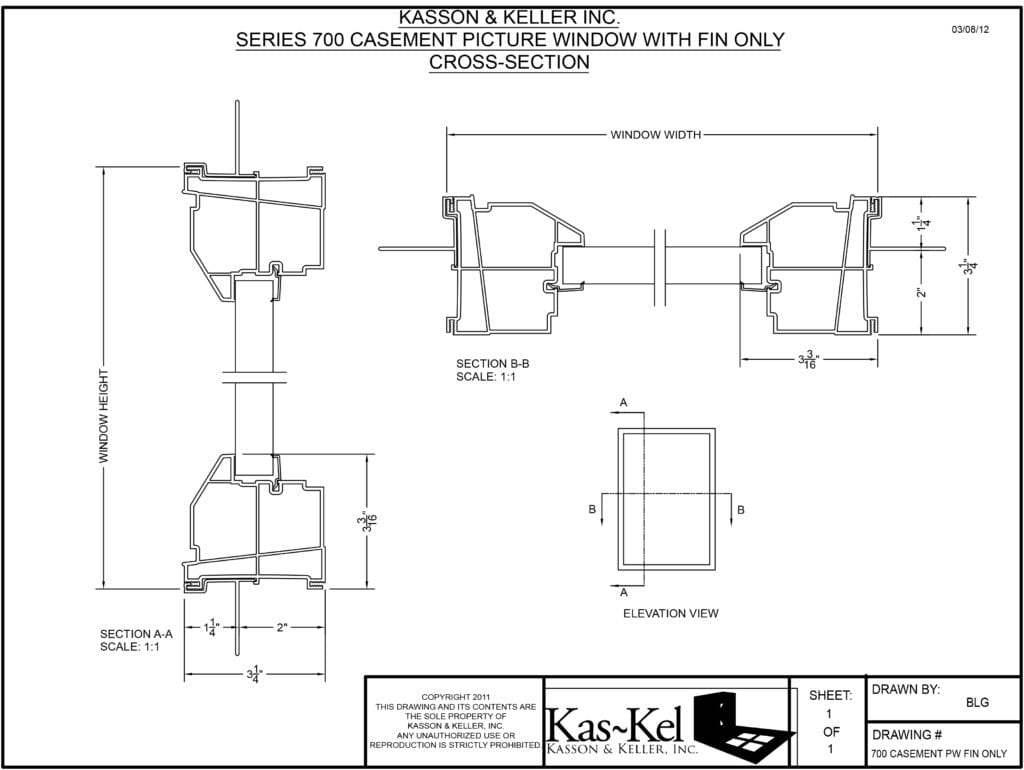

Cross Section

700 Picture Cross Section
Download pdf

Sizing

700 Picture Windows

Call Size Manufactured Rough DO Upper DO Lower Opening Clear
1-5 X 3-0 16 1/2 X 35 1/2 17 X 36 10 1/8 X 29 1/8 1-5 X 3-0 16 1/2 X 35 1/2 17 X 36
1-5 X 3-5 16 1/2 X 40 1/2 17 X 41 10 1/8 X 34 1/8 1-5 X 3-5 16 1/2 X 40 1/2 17 X 41
1-5 X 4-0 16 1/2 X 47 1/2 17 X 48 10 1/8 X 41 1/8 1-5 X 4-0 16 1/2 X 47 1/2 17 X 48
1-5 X 5-0 16 1/2 X 59 1/2 17 X 60 10 1/8 X 53 1/8 1-5 X 5-0 16 1/2 X 59 1/2 17 X 60
1-5 X 6-0 16 1/2 X 71 1/2 17 X 72 13 1/8 X 65 1/8 1-5 X 6-0 16 1/2 X 71 1/2 17 X 72
Call Size Manufactured Rough DO Upper DO Lower Opening Clear
1-8 X 6-0 19 1/2 X 71 1/2 20 X 72 13 1/8 X 65 1/8 1-8 X 6-0 19 1/2 X 71 1/2 20 X 72
1-8 X 3-0 19 1/2 X 35 1/2 20 X 36 13 1/8 X 29 1/8 1-8 X 3-0 19 1/2 X 35 1/2 20 X 36
1-8 X 3-5 19 1/2 X 40 1/2 20 X 41 13 1/8 X 34 1/8 1-8 X 3-5 19 1/2 X 40 1/2 20 X 41
1-8 X 4-0 19 1/2 X 47 1/2 20 X 48 13 1/8 X 41 1/8 1-8 X 4-0 19 1/2 X 47 1/2 20 X 48
1-8 X 5-0 19 1/2 X 59 1/2 20 X 60 13 1/8 X 53 1/8 1-8 X 5-0 19 1/2 X 59 1/2 20 X 60
1-8 X 6-0 19 1/2 X 71 1/2 20 X 72 13 1/8 X 65 1/8 1-8 X 6-0 19 1/2 X 71 1/2 20 X 72
Call Size Manufactured Rough DO Upper DO Lower Opening Clear
2-0 X 3-0 23 1/2 X 35 1/2 24 X 36 17 1/8 X 29 1/8 2-0 X 3-0 23 1/2 X 35 1/2 24 X 36
2-0 X 3-5 23 1/2 X 40 1/2 24 X 41 17 1/8 X 34 1/8 2-0 X 3-5 23 1/2 X 40 1/2 24 X 41
2-0 X 4-0 23 1/2 X 47 1/2 24 X 48 17 1/8 X 41 1/8 2-0 X 4-0 23 1/2 X 47 1/2 24 X 48
2-0 X 6-0 23 1/2 X 71 1/2 24 X 72 17 1/8 X 65 1/8 2-0 X 6-0 23 1/2 X 71 1/2 24 X 72
Call Size Manufactured Rough DO Upper DO Lower Opening Clear
2-4 X 3-0 27 1/2 X 35 1/2 28 X 36 21 1/8 X 29 1/8 2-4 X 3-0 27 1/2 X 35 1/2 28 X 36
2-4 X 3-5 27 1/2 X 40 1/2 28 X 41 21 1/8 X 34 1/8 2-4 X 3-5 27 1/2 X 40 1/2 28 X 41
2-4 X 4-0 27 1/2 X 47 1/2 28 X 48 21 1/8 X 41 1/8 2-4 X 4-0 27 1/2 X 47 1/2 28 X 48
2-4 X 5-0 27 1/2 X 59 1/2 28 X 60 21 1/8 X 53 1/8 2-4 X 5-0 27 1/2 X 59 1/2 28 X 60
2-4 X 6-0 27 1/2 X 71 1/2 28 X 72 21 1/8 X 65 1/8 2-4 X 6-0 27 1/2 X 71 1/2 28 X 72

Warranty

Best of Class Warranty

  • Lifetime Mechanical Parts
  • Glass Breakage Coverage
  • Lifetime Insulating Glass
  • Lifetime Vinyl Extrusions

Our Windows are made in the Northeast for the Northeast backed by 4 generations of our family – serving you since 1946.

MADE IN AMERICA

Warranty
Girl looking out a window at a snowy yard

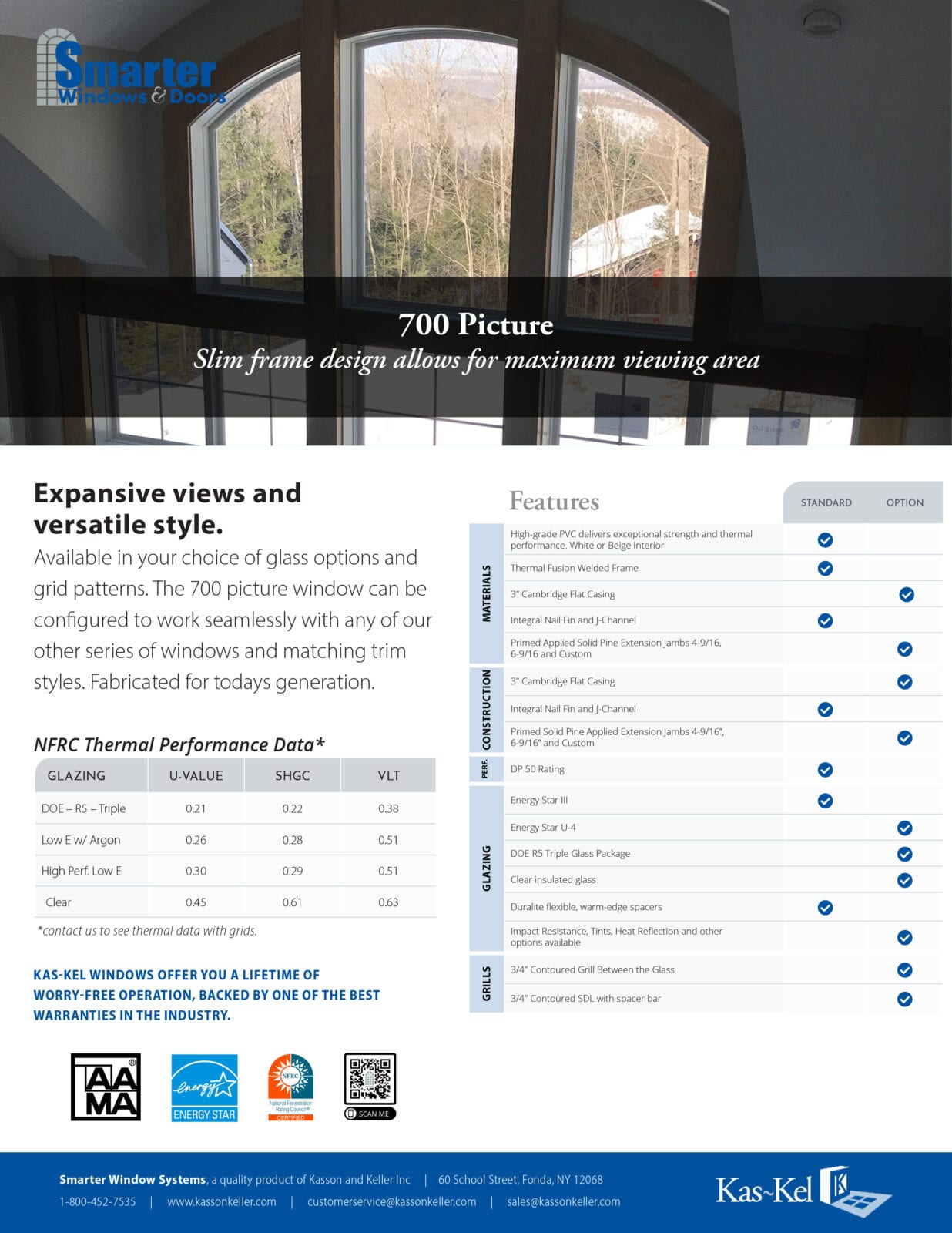

Brochure

700 Picture

Standard Colors

Terrastone color swatch

Terrastone

Fieldstone color swatch

Fieldstone

Black

Black

Bronze color swatch

Bronze

Autumn Red

Autumn Red

Hunter Green

Hunter Green

Have a color in mind? We can custom match it!

*All representations of colors are mechanically reproduced and may vary from the actual product. Terms and conditions apply.

700 Window Series by Kasson & Keller

700 Awning
700 Awning
Multi-point locking provides added security
700 Casement
700 Casement
Multi-point locking provides added safety and security
700 Picture
700 Picture
styled to fit almost any décor
The Nathaniel
The Nathaniel
Kas - Kel Helps clients with Challenges
Wedge Point Apartments
Wedge Point Apartments
Custom Exterior colors with Complementary Shapes
Whether you are a builder, architect or home owner, Smarter new construction windows will offer you a lifetime of worry-free operation, backed by one of the best warranties in the industry.
Energy Star
AAMA Logo
NFRC Certified

* Rating, qualification, or compliancy is dependent on selected options and window style.
